Note

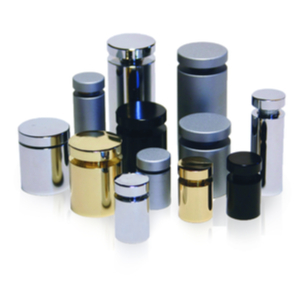

Large range of standoffs
S1 range are 18mm long and 16mm dia and are for use with panels 2mm to 13mm wide. 12mm holes are required. Available in polished chrome, satin chrome, polished brass and black finishes.
S3 range are 16mm dia and 40mm long and designed for panels up to 20mm thick. 12mm holes required. Available in polished chrome, satin chrome, polished brass and black finishes.
S4 range are 25mm dia x 25mm long and designed for panels up between 2mm and 18mm thick and require 13mm holes. Available in polished chrome, satin chrome, polished brass and black finishes.
S6 range are 25mm diameter x 50mm long. They are designed for panels up to 25mm thick and require 13mm holes. Available in satin chrome, polished brass and black finishes.
S7 range are 25mm diameter x 75mm long. They are designed for panels up to 25mm thickness and require 13mm holes. Available in polished chrome and satin chrome finishes.
S12 range are 12mm diameter x 20mm long. They are designed for panels between 1 to 13mm thicknesses and require 9mm holes.
S16 range are 16mm dia x 7mm long caps only. Any thickness of panel can be fitted using the S16 stand offs. A screw of your choice fixes the wall plate through a 5mm hole in your panel then screw on the decorative cover
