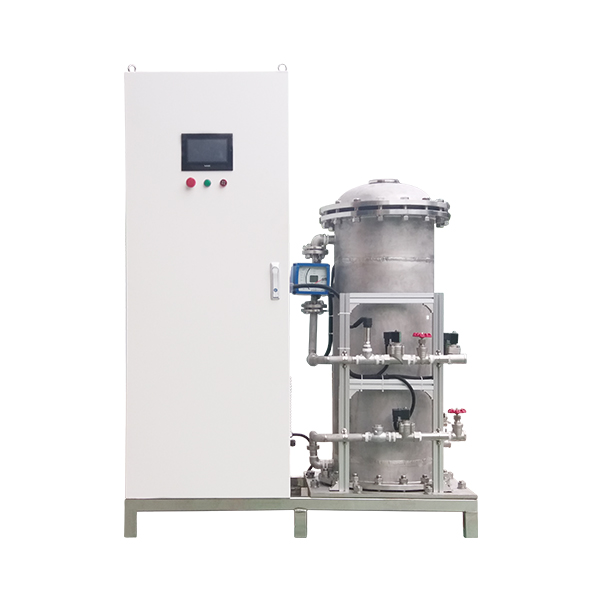

1.1.5 kgs ozone mixing systems for water purification 2.Being with Simens' PLC 3.One year warranty for the whole system 4.Venturi jet or air diffuser for aeration
In application of ozone either for water treatment, food sterilization, fresh or bleaching, usually we need to mix ozone into water completely, then to do what we have O3 to do. Now in front of us is there 2 questions.
What parts does a complete set of ozone water mixing system has and how impoartance of each parts for the whole system?
a, Air compressor b, Air tank c, Freezer dryer d, Filter e, Automatic drain valve f, Precision filter g, Absorption dryer h, Non-oil filter i, Oxygen machine j, Ozone generator
Manual-CE-CY-800-5000G_00
Why we need to add filter, non-oil filter, absorption dryer for ozone water mixing systems? And it looks like that the cost of ozone system would go up, and that many a users choose not to have them in order to save so-called cost. As there is 2 reasons.
1 life-span of ozone machine 2 CO3
One reason is when air gas is more clean and dry, in quatz tube discharging stainless steel net has better working condition, also it is good for ozone tube, so it has great impact on life-span of ozone machine. The other is that we all know that "the gas purify and dry grade has everything to do with final CO3", which account for the half of what we want to have.
In ozone mixing system, what we need to have is product of CO3 and gas volume, namely CO3 x Volume, that is how important CO3 is. Lastly, we also need to know what the process of corona discharge to make O3 is?
ozone tube Ozone quantity 30g/h (up to 10kgs) Rated current 600mA Ozone current 1650mA Power 1600W Voltage 220-240V Frequency 50Hz Temperature <45℃ Humidity <85% Air source Self oxygen Ozone outlet interface G1/2 Weight 60KGS Size 500*500*1400 Cable 3*1.5mm2
