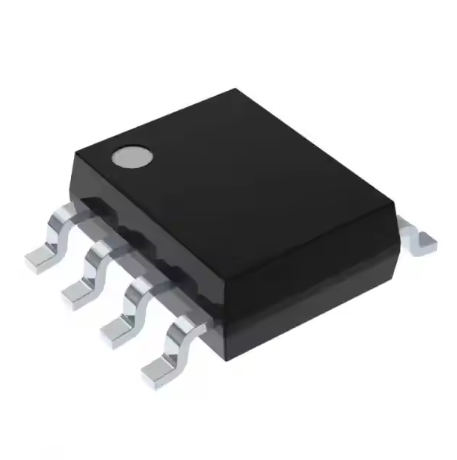

UCC27524DR

Censtry Electronics

Features

● Industry- Standard Pinout

● Two Independent Gate-Drive Channels

● 5-A Peak Source and Sink-Drive Current

● Independent-Enable Function for Each Output

● TTL and CMOS Compatible Logic Threshold Independent of Supply Voltage

● Hysteretic-Logic Thresholds for High Noise Immunity

● Inputs and Enable Pin-Voltage Levels Not Restricted by VDD Pin Bias Supply Voltage

● 4.5-V to 18-V Single-Supply Range

● Outputs Held Low During VDD-UVLO, (Ensures Glitch-Free Operation at Power up and Power Down)

● Fast Propagation Delays (13-ns Typical)

● Fast Rise and Fall Times (7-ns and 6-ns Typical)

● 1-ns Typical Delay Matching Between Two Channels

● Two Outputs are in Parallel for Higher Drive Current

● Outputs Held Low When Inputs Floating

● PDIP (8), SOlc (8), MSOP (8) PowerPADTM and 3-mm x 3-mm WSON-8 Package Options

● Operating Temperature Range of - -40°C to 140°C


2 Applications

● Switched-Mode Power Supplies

● DC-DC Converters

● Motor Control, Solar Power

● Gate Drive for Emerging Wide Band-Gap Power Devices such as GaN
