Note

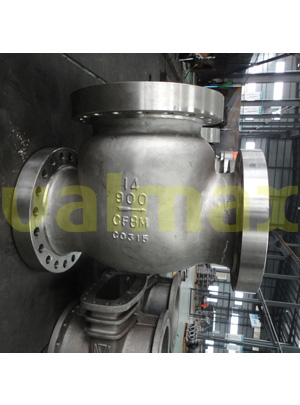

Model No.: CVCF8M 900LB-14 is a 14-inch check valve with a 900 LB pressure rating, featuring an ASTM A351 CF8M body with RF flanged ends. This valve adheres to BS 1868 standards and is designed for reliable performance in high-pressure applications. The valve's material is ASTM A351 CF8M stainless steel, providing excellent corrosion resistance. The face-to-face dimension is 1029mm, with machining tolerance controlled according to GB/T 1804 standards.
Key Specifications / Features:
Design Basis: ASME B16.34, GB 12236, API 6D
Flanged Ends: ASME B16.5, GB 9113
Butt-Welding Ends: ASME B16.25
Face-to-Face Dimension: ASME B16.10, GB 12221
Inspection and Test: API 598, API 6D, JB/T 9092
Pressure Rating: Class 150
This check valve is ideal for applications requiring durability, high-performance sealing, and compliance with international standards.
