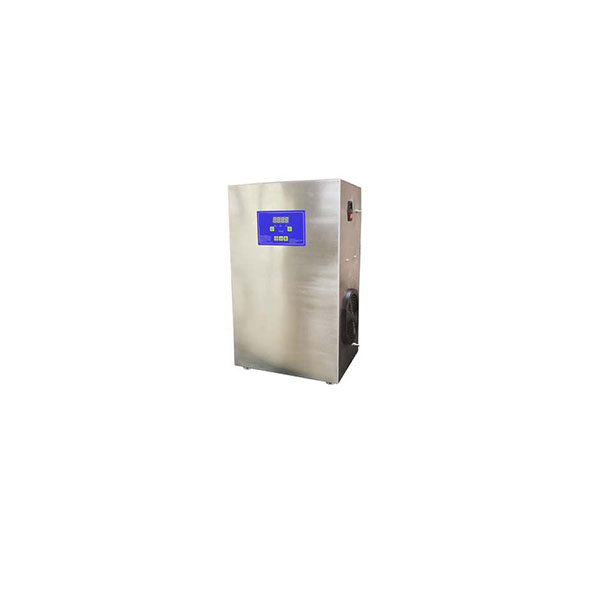

Water Treatment

ozone machine

CE Environment Technology Co., Ltd.

1.Ozone production 3g/hr
2.Can be moved by 4 wheels or non-slip feet
3.Can be controlled by remote or key operation in the LCD panel
4.Ozone concentration can be adjusted by ozone current from 0 to 300mA

1. Ozone output 3g/hr, portable ozone generator, 202 SS case
2. Built-in air pump, air flow, 10L/hr
3. With drying drum or without drying drum including activated alumina
4. Being with 4 non-slip feet or wheel to shift or move
5. Flyback transformer seperating from circuit board

What is the condition to make ozone for corona discharge?

It is "E" and than 〉 E(air), which has everything to do with voltage and electrode texture. According to E = KQ/R2 (K is the constant of electrostatic force, k = 9.0) × 10^9N.m^2/C^2), when E（electrostatic field）>E( air), O3 starts to be produced. O2=O2 + O(3P) + O(1D) + O+(4S0) + O+(1S0) + O-(2P0) + etc = O3 , please attention that the chemical equation is reversible.

What is the difference between with or without drying drum in air ozone generator?

1. Whether external air is oxygen or air, after drying drum, the air would be more dry, which means ozone output per hour is higher
2. Once drying drum inside, the portable ozone generator has better working condition, then life-span is longer.

PS: In n humid area or taking air as external air source, we advice you to have such air portable ozone generator with drying drum in it for office, home, workshop to disinfect.

Ozone quantity 3g/h
Ozone current 300mA
Power 130W
Voltage 220-240V
Frequency 50Hz
Temperature <45℃
Humidity <85%
Air source self
Ozone concentration 10-15mg/L
Weight 11KGS
Size 350*250*500
Ozone outlet interface M6
Cable 3*0.75mm

What consists of a full set of ozone mixing system?

1.Compressor
2.Air tank
3.Oil filter
4.Filter
5.Refrigerator freezer
6.Absorption dyrer
7.Oxyen machine
8.O3 machine

In ozone mixing system, what can do oil filter, refrigerator freezer and absorption dryer? please proceed to view more
