2.4 Inch 240x320 QVGA 6PIN UART TN 220nits TFT LCD Display Module

2.4 Inch 240x320 QVGA 6PIN UART TN 220nits TFT LCD Display Module

EXSON

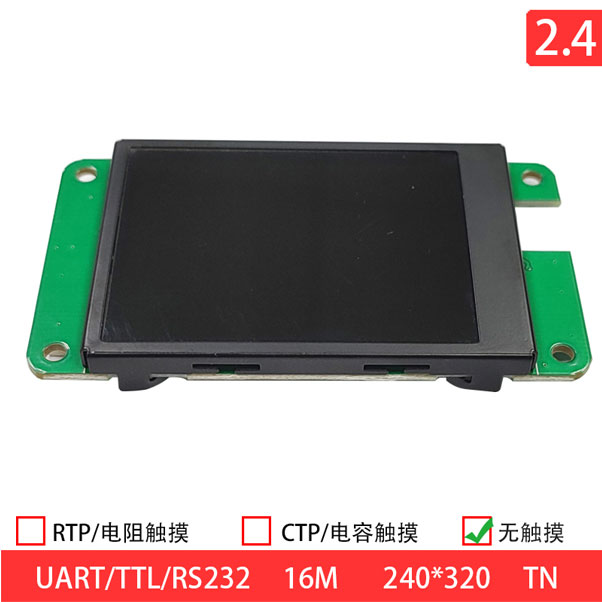

EX02402-A01 is a 2.4 inch, UART TN TFT LCD module . The module dimension is 44.02(W)×78.11(H); active area 36.72(W)×48.96(H) mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) . This 2.4 inch tft lcd display module has built-in IC ST7789V supporting RS232/TTL interface. The brightness is 220 cd/m2 . Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.

General Specifications of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits
No. Item Specification
1 LCD size 2.4 inch
2 Resolution 240(RGB)×320
3 Active area 36.72(W)×48.96(H)
4 Module size 44.02(W)×78.11(H)×7.56(T)mm
5 Viewing Direction 12 O’CLOCK
6 Driver IC ST7789V
7 Interface UART  RS232/TTL
8 Brightness 220cd/m2
9 color 250cd/m2
10 Operating temperature -20℃-70℃
11 Storage temperature -30℃~+80℃

Outline Dimension of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits
