Monel Demister Pads

Hebei Drahtgeflecht Knitted Mesh Co., Ltd.

MONEL DEMISTER PADS OF KNITTED FINE MONEL WIRE MESH CLOTH IN MULITPLE LAYER SECTION BLANKETS / MATTRESSES FOR SULFURIC ACID, HYDROFLOURIC ACID, BRINES
Monel Mesh, also known as Nickel alloy Mesh, can be used in corrosion filtration environments including sulfuric acid, hydroflouric acid, brines, and water.

We supply knitted monel mesh blankets used as demister pad in air filters, breathers and separators made for cars, trucks and farm equipment.

Our monel mesh pad demisters are exported to U.A.E, USA and many other countries.

Why Monel Wire Mesh Blankets?

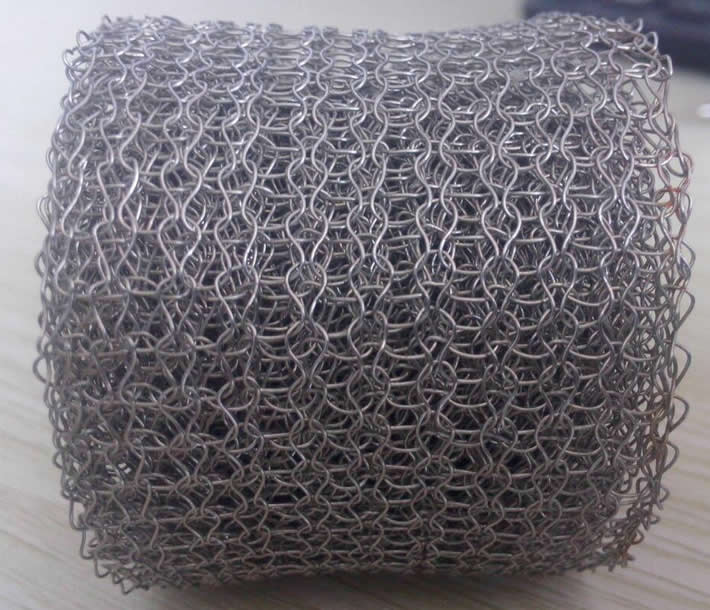

The porous blankets designed and constructed of carefully knitted wire mesh can efficiently abate mist particles.

As one of major alloy materials applied, Monel is a nickel (copper) alloy that offers higher strength than unalloyed nickel while remains ductility.

Materials:
Monel 400
Nickel 201
Ni 200
N5 nickel


Types and Specifications of Monel Demister Mesh Pads and Blankets


Monel Demister Pad ASTM B164 (monel 400)

Pad, mist eliminator, style: york#431
Size: 3600mm od
Thickness: 150mm, total thickness with frame: 200mm
Density: 144 kg/m 3
Material: ASTM B164 (monel 400)
Including: 1.flat bar, 25 w x 3mm t, b-127(monel), 2.square washer, 40 x 40 x 3mm t, b-127(monel ), 3.round bar, 6mm dia, b-164 monel, 4.spacer rod, 6mm dia, b-164(monel), 5.support beam, 200x200x12tx12t, sa36, 6.stud bolt with 3 nuts, m12x270l, m12x290l, f468 alloy 400.



Pad Demister Monel
Pad, demister size: 1280mm diameter
Thickness: 152mm, total thickness with frame: 202.4mm
To pass through 24 inch (i.d 545.6mm) manhole
Material: monel
Including:
Flatbar (top grid) (25 w x 3mm t, monel)
Round bar (bottom grid) (6mm dia, monel)
Spacer pipe (3/8", sch 10s, monel)
Stud bolt with 2 nuts (m12x255l, alloy 400)
